YIZUMI C Series multi-component injection molding machine is tailored for an era that craves enhanced quality of life and individualization. Emphasizing its core values of stability and customization, the Custom Series pledges to infuse vibrancy and diversity into our everyday lives. Available with clamping forces from 1,600 to 4,800 kN.
Icon
Stability

Icon
Customization

Clamping Unit

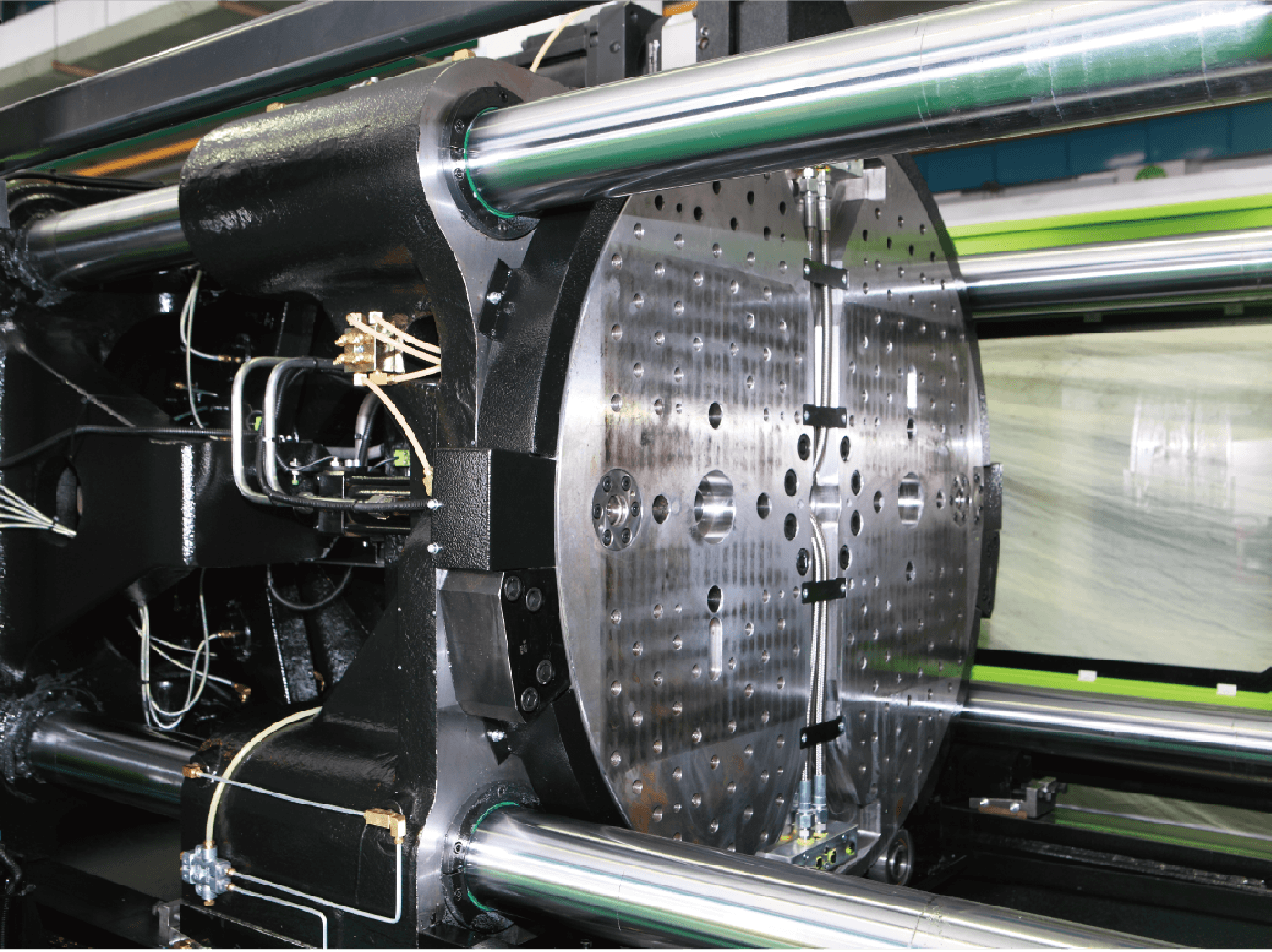

High-rigidity T-slot platen
- High-rigidity platen design of all series machines increases the overall rigidity of clamping unit by 30%.
- High-rigidity T-slot platen brings convenience for installation and removal of mold, reduces the wear of thread due to long-term use of screw hole and extends the life of
platen.
Mold opening and closing with proportional valves
Improve the repeatability of mold opening and stability of low-pressure mold protection.
Digital closed-loop positioning control technology
The DCPC technology enables turntable to rotate smoothly without impact and position accurately.

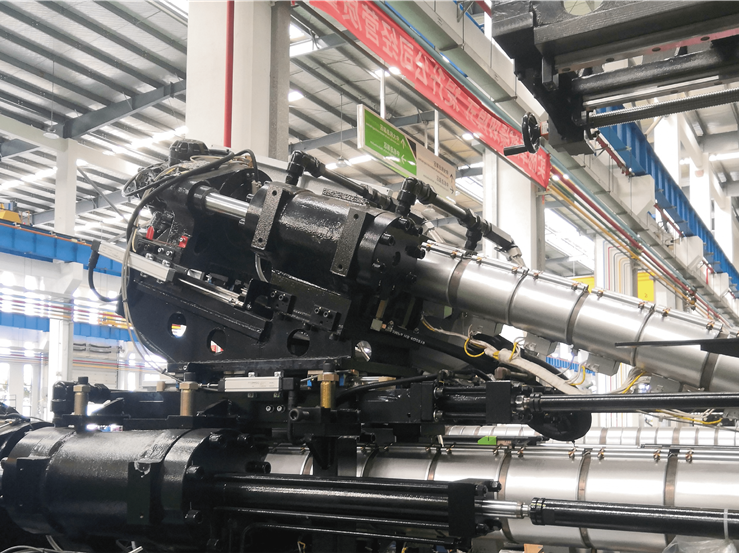

Injection Unit
Adjustable nozzle center distance
- The stacking injection unit design allows to adjust the minimum distance of nozzles between the injection units.
- Different standard adjustable ranges of different tonnages to meet the use requirements of molds with various center distances.
Standard numerically controlled proportional back pressure
To provide the necessary conditions for the optimal plasticizing state of plastic melt.
Integrated linear guide rail structure
The injection unit is equipped with the one-piece supporting base which is integrated with linear guide rails, which minimizes the friction to motion, increases injection accuracy and enhances plasticizing efficiency.
L/V Independent Injection Unit

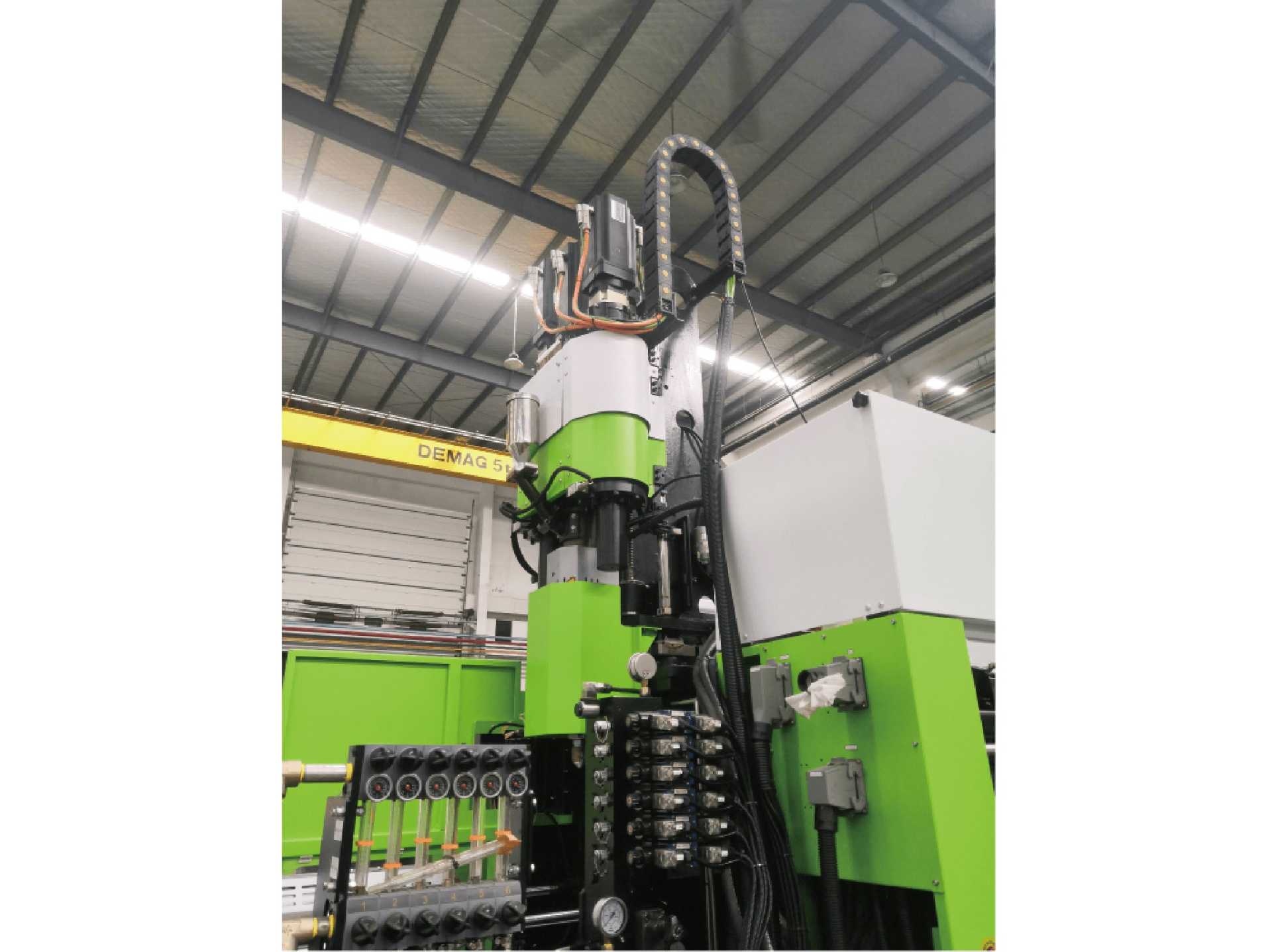

Independent V injection unit
- Independent V-type injection unit adopts independent modular design to meet the combination needs of injection molding machines of different tonnages.
- With YIZUMI's optimization design, the removal of the injection unit provides more mold height for convenient installation and disassembly of molds.
Independent L injection unit
- Independent L-type injection unit adopts independent modular design to meet the combination needs of injection molding machines of different tonnages and different brands. - Flexible injection unit is convenient for using, providing series functions including core pulling, sequential valve, hot runner and synchronous action.

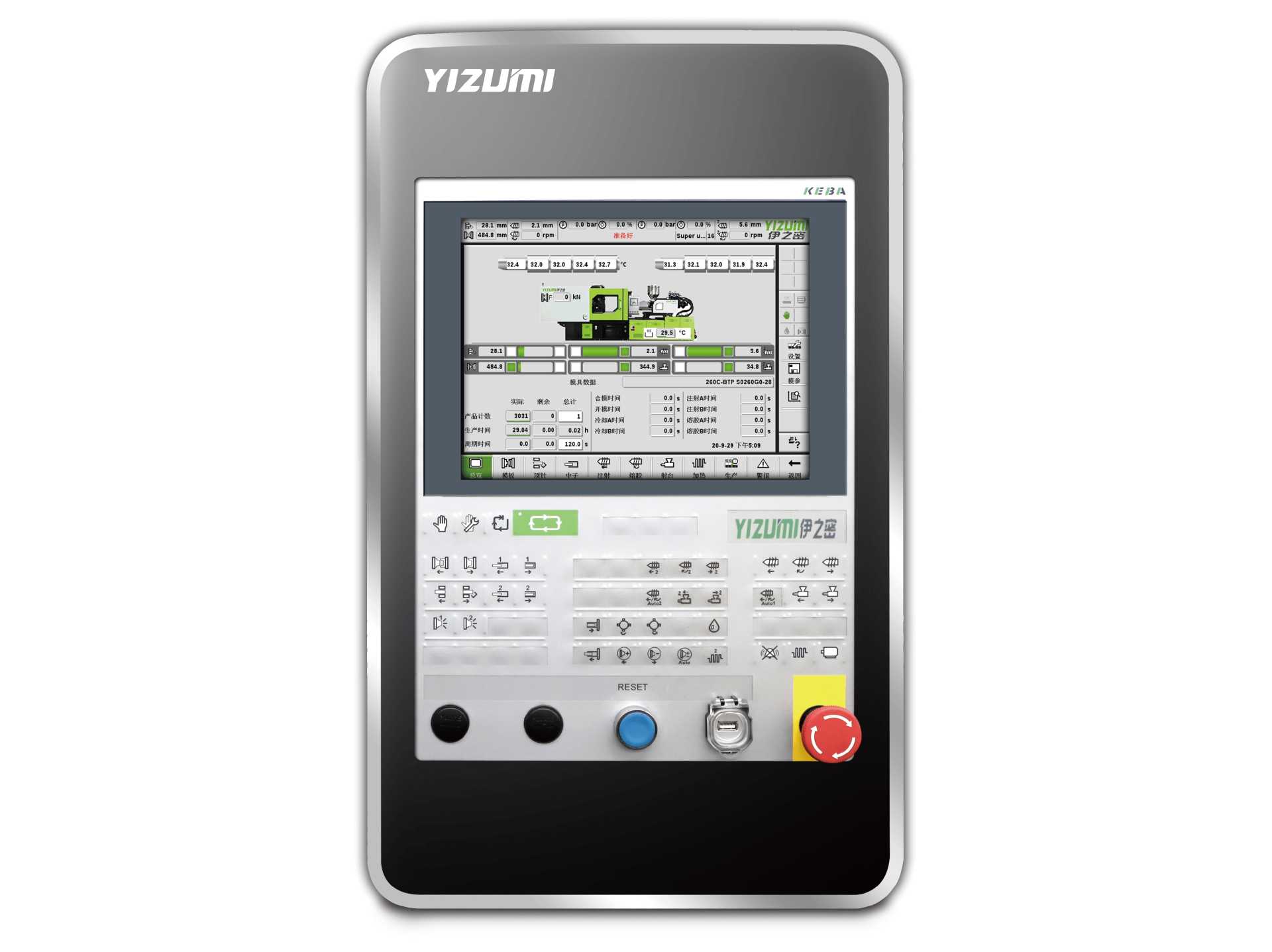

Powerful, responsive, user-friendly HMI Control System
The Austrian KEBA2980 computer is characterized by user friendly interface and fast response. The powerful functions offered by KEBA system are ideal for the various molding process solutions of multi-component machines.

Product Video

HMI (Human Machine Interface)
Double-layer thick-wall lens

Industry Application

Auto Parts
Auto Parts
Relevant Recommendation
Relevant Products
Relevant Technologies
Relevant Automation
CG-P Series High-end Multi-component Injection Molding Machine

CG-P Series High-end Multi-component Injection Molding Machine

The YIZUMI C Series multi-component injection molding machine is designed for enhanced quality of life and individualization. Focused on stability and customization, the Custom Series aims to bring vibrancy and diversity to everyday life. Clamping forces range from 1,600 to 8,000 kN.
CE-P Series High-end Electric Multi-component Injection Molding Machine

CE-P Series High-end Electric Multi-component Injection Molding Machine

The CE-P Series, ideal for auto parts, medical, and 3C electronics, offers advanced technology and efficiency. With refined control, quiet operation, and energy efficiency, it maintains YIZUMI's versatility and reliability. Clamping forces: 1,500-5,500 kN.
D1M Series Two-platen Multi-component Injection Molding Machine

D1M Series Two-platen Multi-component Injection Molding Machine

YIZUMI MultiPro offers multi-component molding with advanced technology, simplifying production with one step. Leading in this field, YIZUMI provides high-end solutions. Clamping forces: 5,000-24,000 kN.
Multipro Multi-component Injection Molding Solution

Multipro Multi-component Injection Molding Solution

From two-color to four-color machines, two stations to multiple stations, small tonnage to large tonnage, and vertical rotation to horizontal rotation, to realize multi-component injection molding of colored products or composite products.
ReactPro

ReactPro

One-step molding to get a perfect surface.
Multi-color

Multi-color

Car lights and multi-color daily necessities.
MultiPro

MultiPro

Provide more economical injection molding solution for multi-color and multi-component product.
Surface Planeness Testing

Surface Planeness Testing

Rapid response Accurate detection.
