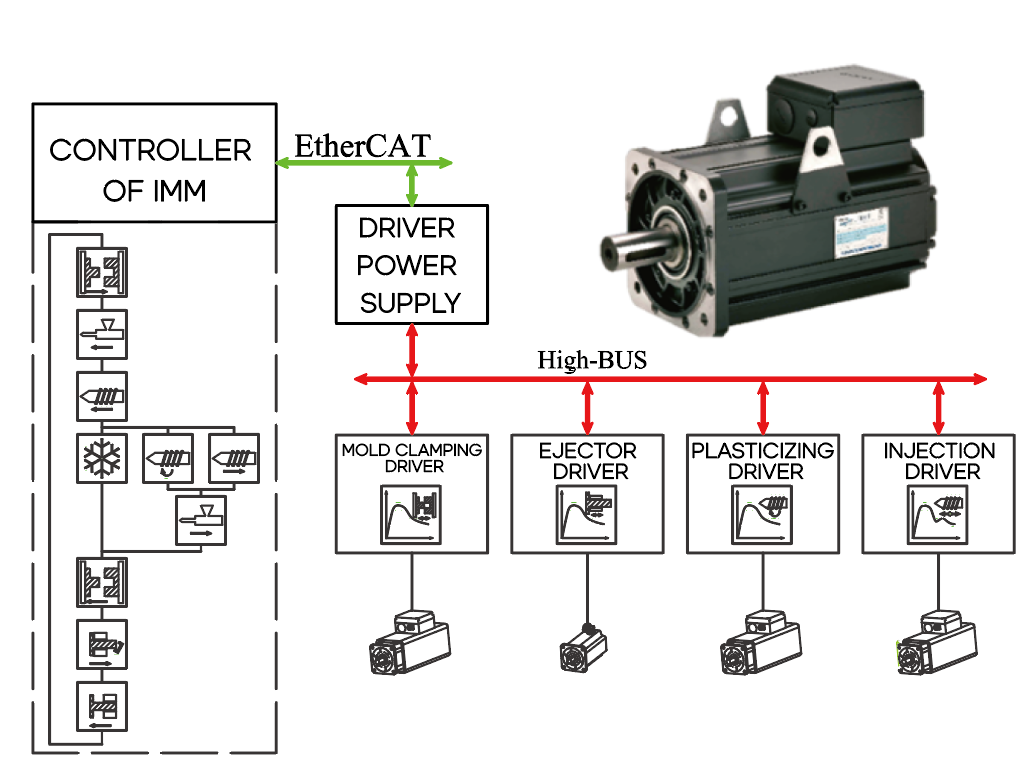

Inovance Iventure System
1. Including Inovance controller, servo
drive and high-response motor. 2.
Communication between the controller and
the drive upgrades to digital type. Same
brand controller and drive show better
performance, faster and more accurate.
3. Quick and stable mold opening, smooth
mold closing with no impact, less wear
and tear to machine. 4. Mold opening
repeatability is within ±0.5mm, with
overshoot less than 2.0mm. 5. Deviation
of injection end position is less than
0.25mm. 6. Deviation of material feeding
position is less than 0.2mm. 7.
Temperature overshoot of first-time
heating is less than 3℃, within ± 1℃.

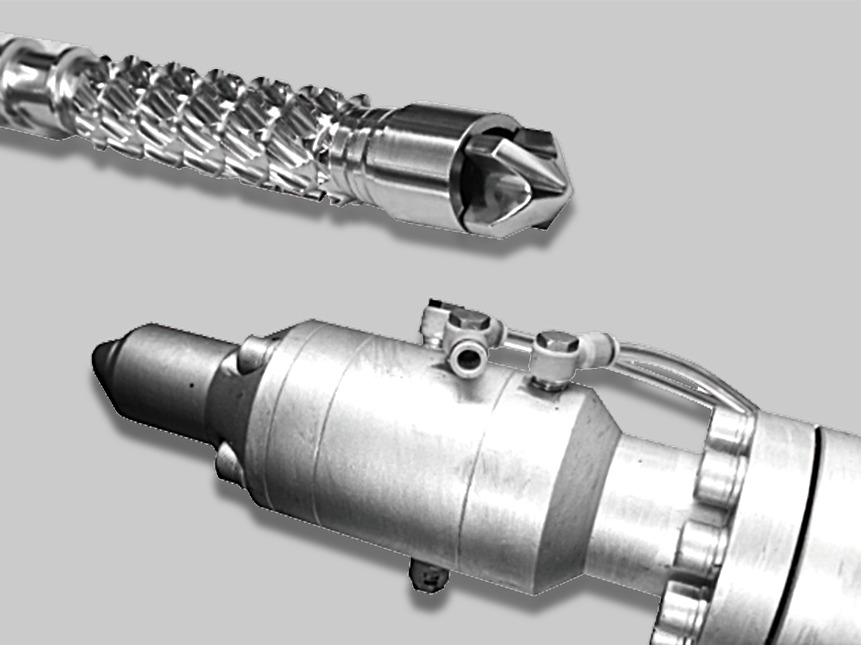

Synchronous plasticizing
1. The plasticizing is synchronized with
the cooling, mold opening and part
picking, shorter cycle time. 2. PAC380K3
and above model are generally equipped
with hydraulic synchronous plasticizing
function, which shortens the product
molding cycle.

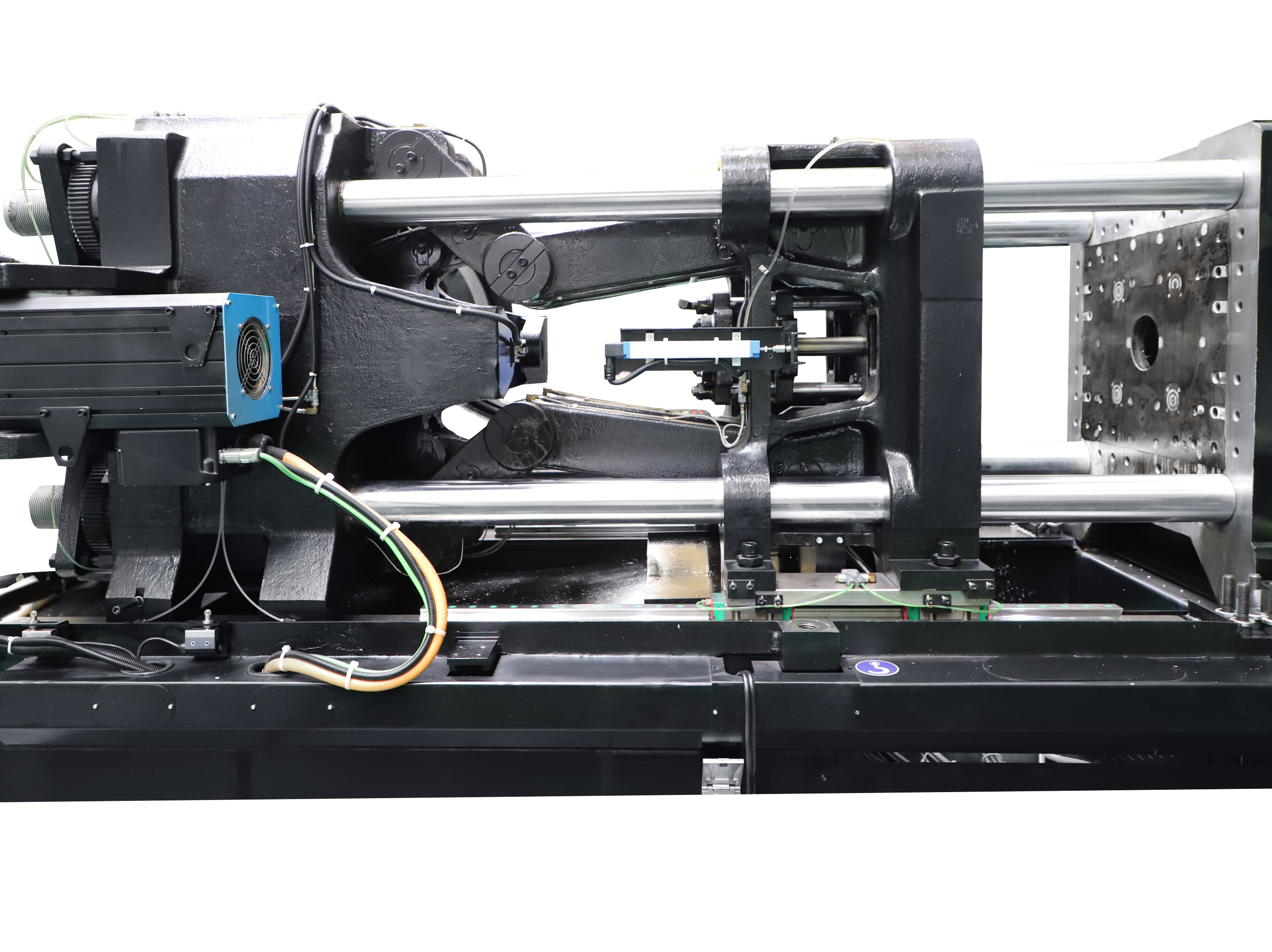

Optimized clamping unit
1. The upgraded clamping unit can
provide larger clamping force, better
facilitating the molding of thin-wall
and deep-cavity products. 2. Platen, tie
bars and machine frame of better
mechanical properties can better improve
the rigidity of the whole machine and
reduce deformation. 3. The rigidity of
overall mold locking is increased by
more than 25%.
