Machine Introduction Video
Precise
Efficient
Energy-saving
Machine Introduction Video

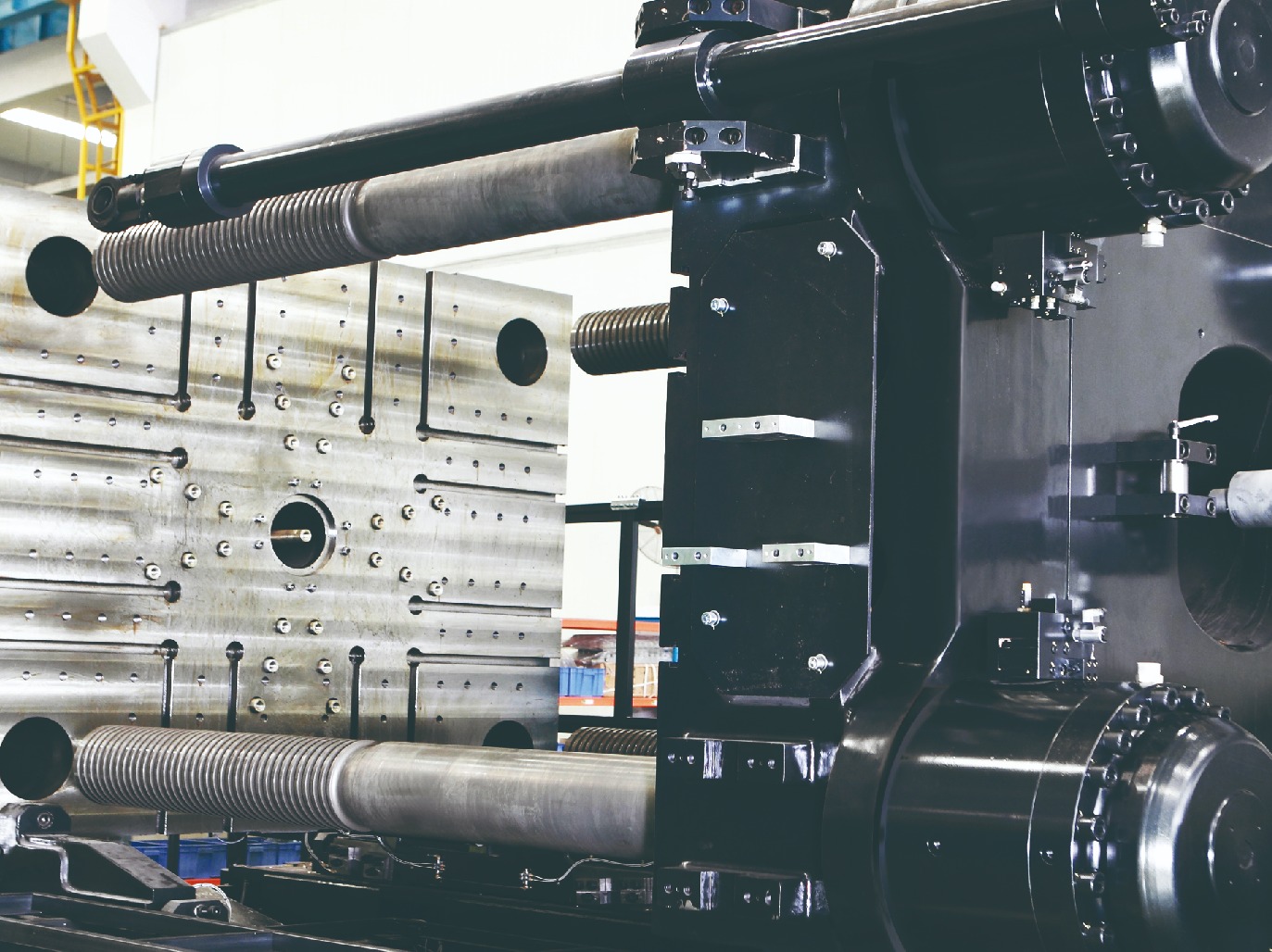

Clamping Unit
Synchronous locking nut mechanism
The fast, reliable and durable synchronous locking nut
mechanism is driven by patented impact-cushioning
cylinders and performs movements accurately.
Highly-rigid extended platen supports
The movable platen is supported by exceptionally long,
rigid
sliding shoes with the function of tilt adjustment and L-shape guide design, providing steady support and precise guidance for large molds.
sliding shoes with the function of tilt adjustment and L-shape guide design, providing steady support and precise guidance for large molds.
Automatic tie bar retraction
The automatic tie bar retraction function is optional
and
designed with stability and reliability. It can remove the
restriction of factory ceiling height
designed with stability and reliability. It can remove the
restriction of factory ceiling height
Injection Unit

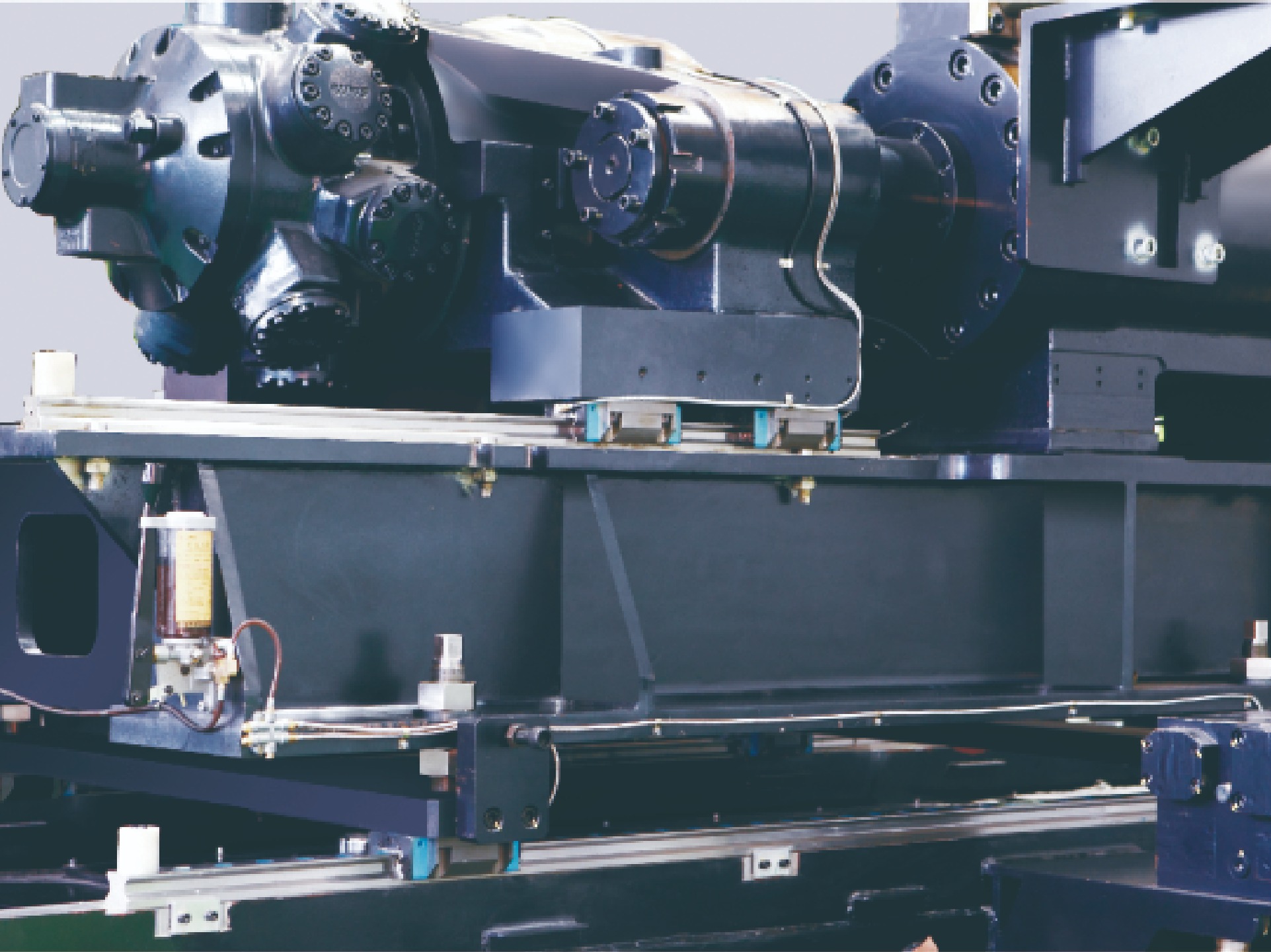

Carriage supports and linear guide rails
High-rigidity carriage supports and double-deck guide
rails are designed with low resistance and ensure high
injection precision.
Ultrasonic digital displacement sensor
Injection and injection carriages are equipped with
ultrasonic displacement sensors which are resistant to
interference and durable, with measurement accuracy up
to 0.001%/F.S
Injection carriage cylinder
Two injection carriages are parallel located. The
universal coupling used for connection ensures stable
nozzle contact and no plastic leak.
Hydraulic System
- The excellent performance of DP series benefits from the
high-performance Ecoservo drive technology and the piston
variable pump, which has strong power, fast response,
little internal leak and significant energy savings.
- The drive system and injection unit will be matched in the form of modules so as to customize the power for machine and minimize energy loss.
- Mold opening during plasticizing, ejection or core pulling is a standard feature that reduces cycle time.
- The drive system and injection unit will be matched in the form of modules so as to customize the power for machine and minimize energy loss.
- Mold opening during plasticizing, ejection or core pulling is a standard feature that reduces cycle time.

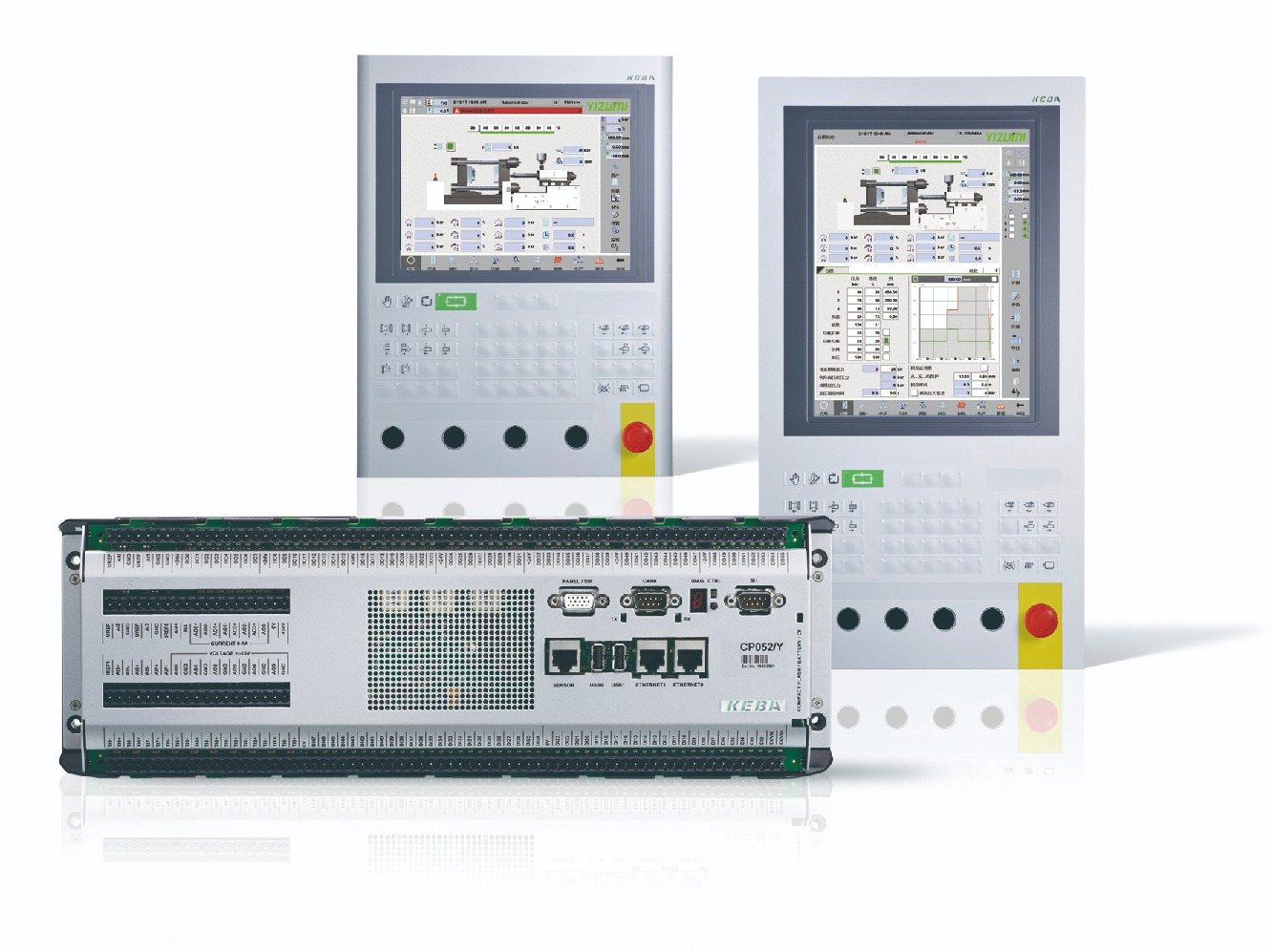

European KEBA Controller
- DP series employs Austria's KEBA control system with
user-friendly interface and higher processing speed. It is
also powerful and capable of providing multiple control
software solutions for special processes.
- 15” TFT color touch screen, visualized graphic parameter setting, actual parameter values recorded and displayed with curves, more accurate online process analysis.
- Free programming is available to meet the needs of special molds and processes. The sequence of machine movements also can be freely edited.
- Extensible I/O modules can integrate with more functions, including temperature control and sequence valve as needed.
- Communication ports for printer, auxiliary equipment and automation.
- 15” TFT color touch screen, visualized graphic parameter setting, actual parameter values recorded and displayed with curves, more accurate online process analysis.
- Free programming is available to meet the needs of special molds and processes. The sequence of machine movements also can be freely edited.
- Extensible I/O modules can integrate with more functions, including temperature control and sequence valve as needed.
- Communication ports for printer, auxiliary equipment and automation.
Product Video
Industry Application
Relevant Recommendation
Relevant Products
Relevant Technologies
D1-N Series Two-platen Injection Molding Machine
The YIZUMI Advanced Series, with
cutting-edge German technology and
extensive expertise, leads in
large-tonnage two-platen injection
molding machines. Our innovative
approach aims to set a benchmark in this
transformative field. Clamping forces
range from 5,500 to 44,000 US tons.
FF Series Electric Injection Molding Machine
This series surpasses traditional
machine standards, facilitating seamless
automation and intellectualization
integration for improved quality
consistency and efficiency. Superior in
thickness, precision, and complexity, it
meets demanding core product needs.
Clamping forces range from 900 to 13,800
kN.
D1M Series Two-platen Multi-component Injection Molding Machine
YIZUMI MultiPro offers multi-component
molding with advanced technology,
simplifying production with one step.
Leading in this field, YIZUMI provides
high-end solutions. Clamping forces:
5,000-24,000 kN.
Uniform stress distribution control technology of tie bars
With special technical treatment, tie
bars are highly-rigid and resistant to
wear and corrosion. Uniformity of stress
distributed on tie bar threads is over
99% without unbalanced force, bringing
durability.
Adaptive PID temperature control technology
With the use of durable ceramic heater
bands and adaptive PID control performed
by the Austrian controller. temperature
control accuracy is up to ±0.5℃.
Fully oil-cooled two-headed motor-driven servo control technology
The fully oil-cooled two-headed
motor-driven servo system is the
quintessence of highly-integrated servo
pump system. It eliminates the influence
of instability in machine operation due
to the work environment and further
reduces energy consumption of hydraulic
circuit. Synchronized drive technology
makes hydraulic circuit response faster
and movements more efficient.
