Machine Introduction Video
≤3% Smaller variation of force on tie bar
55% Shorter dry cycle
≤3‰ Outstanding injection stability
Machine Introduction Video

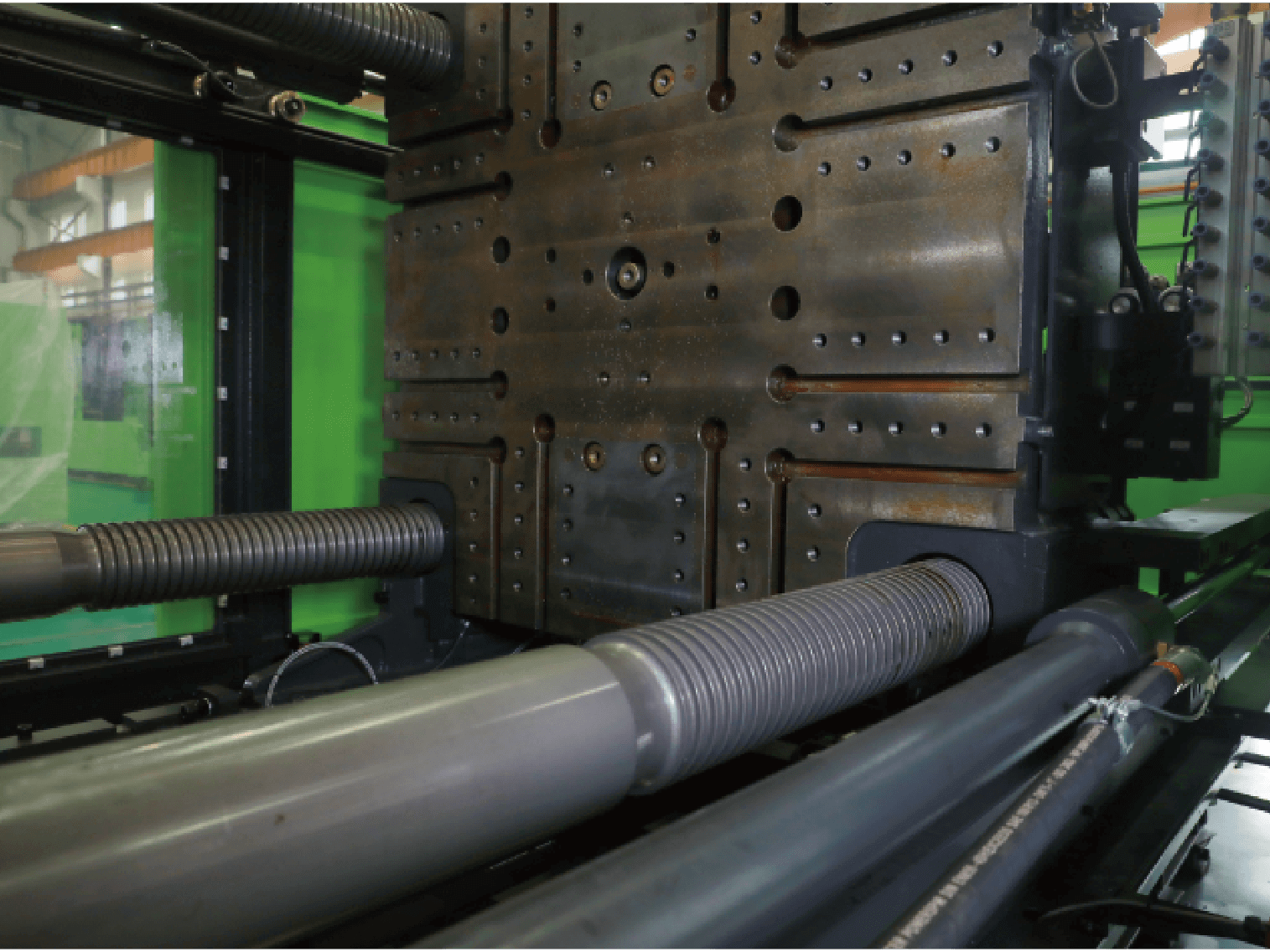

Clamping Unit
Impact-proof synchronized lock nut mechanism
Impact-cushioning synchronized lock nut closing is
fast and more reliable with low noise.
Independent high-pressure cylinder
Mold opening under high pressure for standard. Large
opening force can solve molding problems of
deep-cavity products or car lights which are strongly
coated on mold or have difficulty in mold opening.
Highly-rigid accurate guide device
Long movable platen supports and L-shape guide rails
on machine frame facilitate high load-bearing, guide
capacity, and anti-roll adjustment.

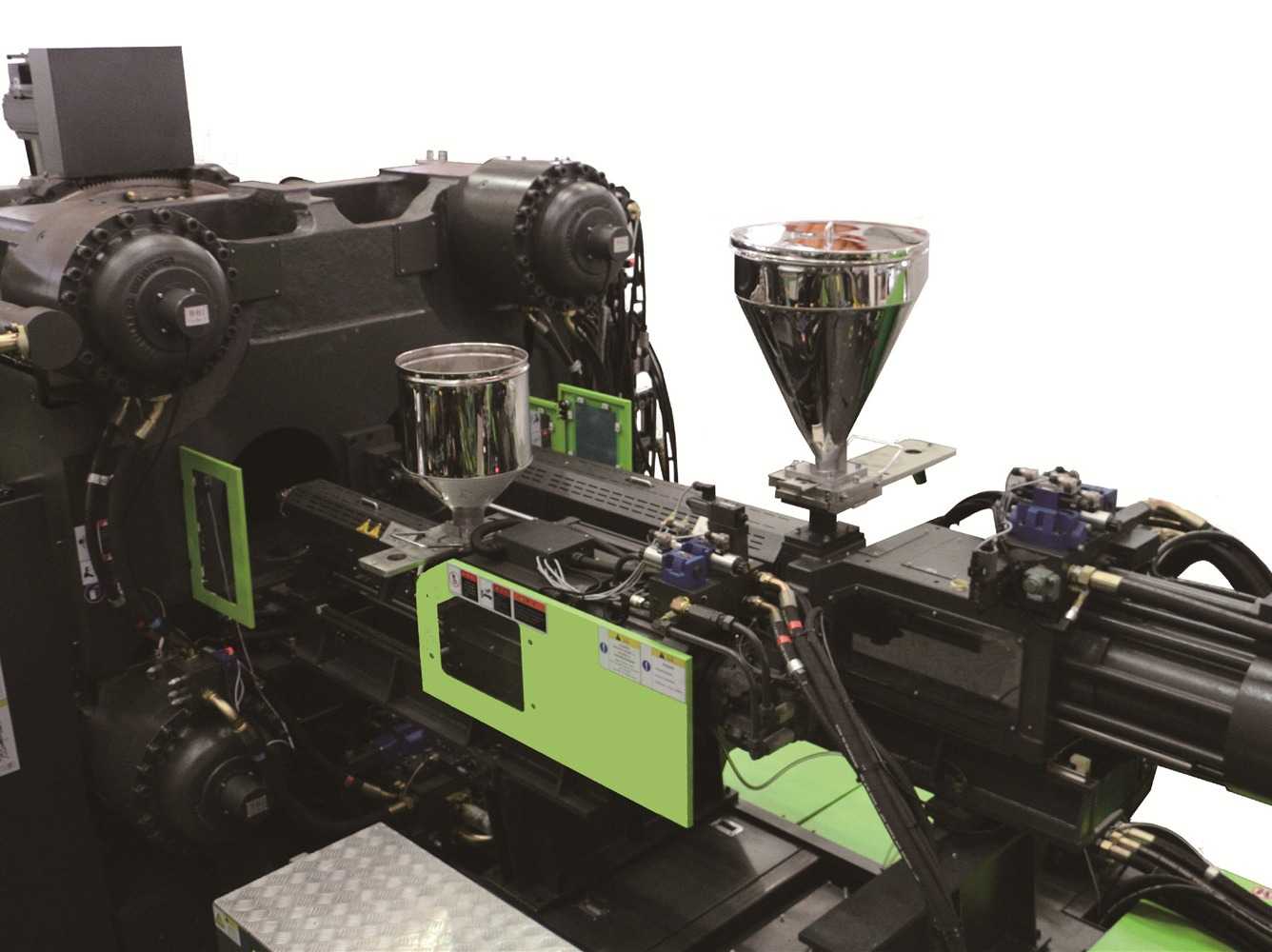

Injection Unit
Ultrasonic displacement sensor
D1 series is equipped with an ultrasonic digital
displacement sensor, characterized by little signal
interference and high position control accuracy.
Adaptive PID temperature control
With the use of durable ceramic heater bands and
adaptive PID control performed by the Austrian
controller, temperature control accuracy is up to
±0.5℃.
Excellent injection performance
Repeatability of injection end position up to ±0.2mm
and repeatability of part weight ≤3‰ meet the needs of
increasing efficiency and lowering costs.

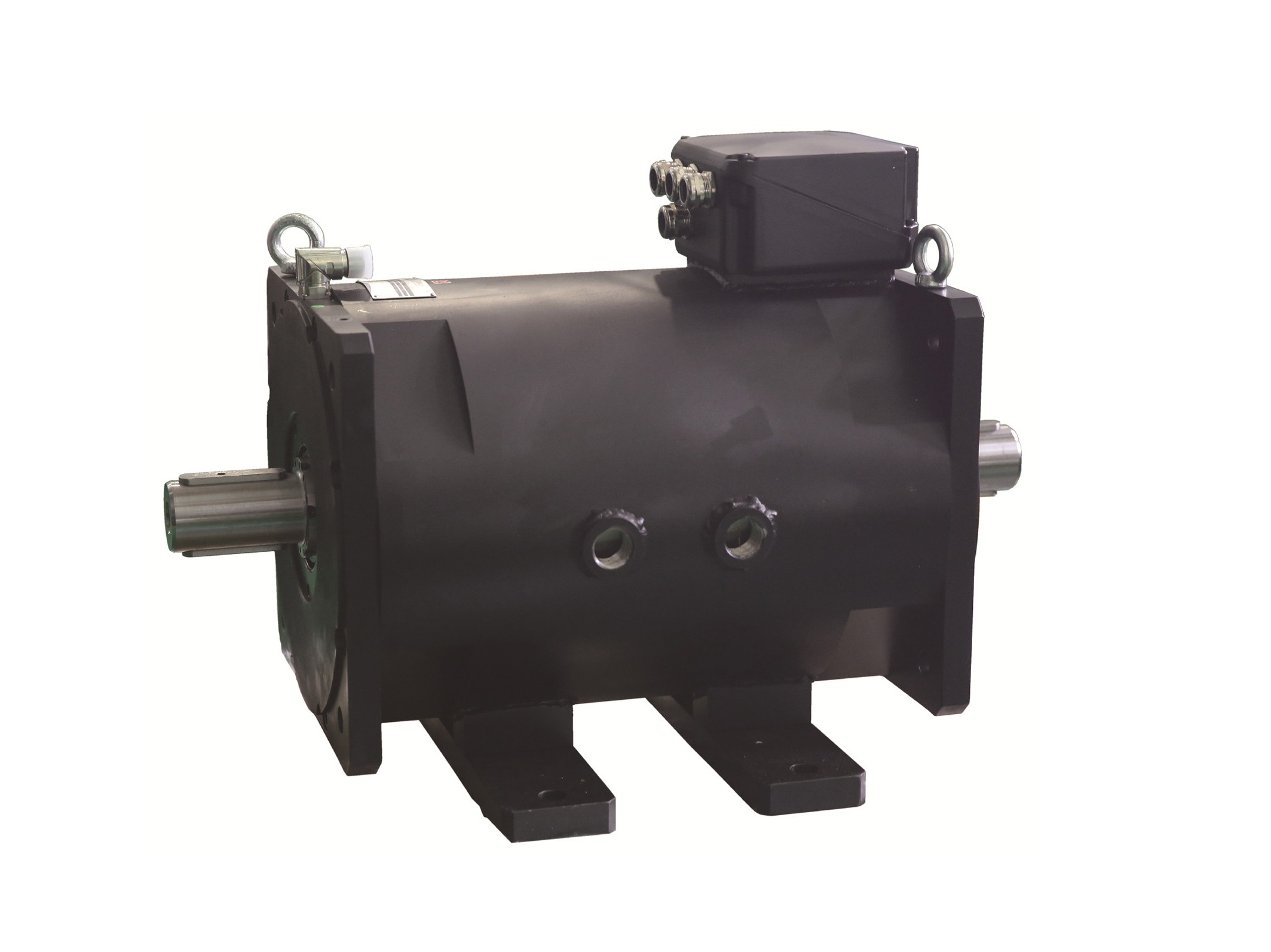

Servo system driven by fully oil-cooled two-headed motor
- The fully oil-cooled two-headed motor-driven servo
system is the quintessence of highly-integrated servo
pump
system. It eliminates the influence of instability in machine operation due to the work environment and further reduces energy consumption of hydraulic circuit.
- Synchronized drive technology makes hydraulic circuit response faster and movements more efficient.
system. It eliminates the influence of instability in machine operation due to the work environment and further reduces energy consumption of hydraulic circuit.
- Synchronized drive technology makes hydraulic circuit response faster and movements more efficient.

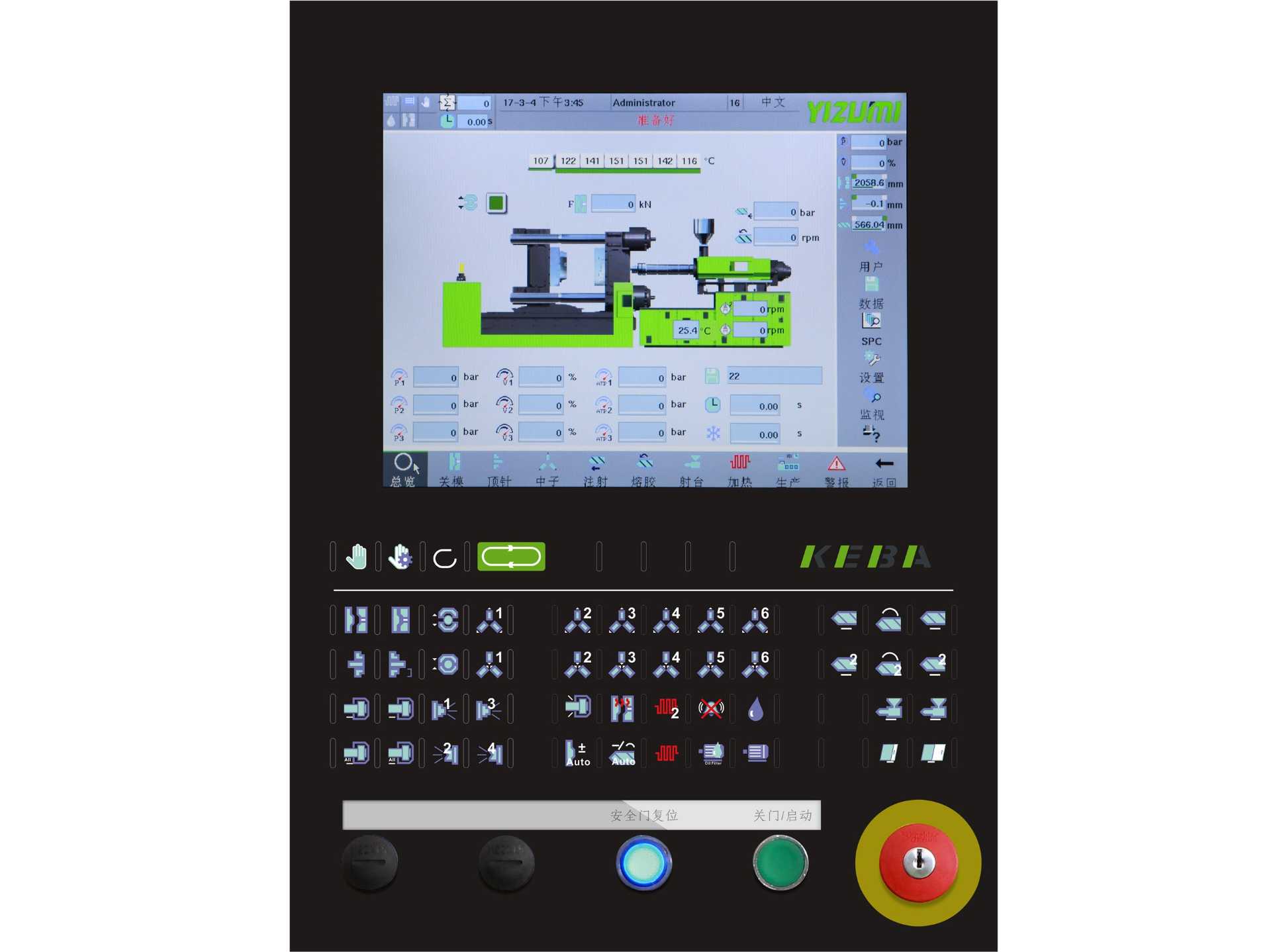

European KEBA Controller
- Memory of alarm and process parameter change, USB
expansion without limit;
- Programming with no restrictions, record of process parameter change curve is available;
- Production process data control (PDP) and statistical process control (SPC);
- New processes like MuCell, ICM, IMC can be integrated.
- Programming with no restrictions, record of process parameter change curve is available;
- Production process data control (PDP) and statistical process control (SPC);
- New processes like MuCell, ICM, IMC can be integrated.
Product Video
Industry Application
Relevant Recommendation
Relevant Products
Relevant Technologies
D1-N Series Two-platen Injection Molding Machine
The YIZUMI Advanced Series, with
cutting-edge German technology and
extensive expertise, leads in
large-tonnage two-platen injection
molding machines. Our innovative
approach aims to set a benchmark in this
transformative field. Clamping forces
range from 5,500 to 44,000 US tons.
FF Series Electric Injection Molding Machine
This series surpasses traditional
machine standards, facilitating seamless
automation and intellectualization
integration for improved quality
consistency and efficiency. Superior in
thickness, precision, and complexity, it
meets demanding core product needs.
Clamping forces range from 900 to 13,800
kN.
D1M Series Two-platen Multi-component Injection Molding Machine
YIZUMI MultiPro offers multi-component
molding with advanced technology,
simplifying production with one step.
Leading in this field, YIZUMI provides
high-end solutions. Clamping forces:
5,000-24,000 kN.
Uniform stress distribution control technology of tie bars
With special technical treatment, tie
bars are highly-rigid and resistant to
wear and corrosion. Uniformity of stress
distributed on tie bar threads is over
99% without unbalanced force, bringing
durability.
Adaptive PID temperature control technology
With the use of durable ceramic heater
bands and adaptive PID control performed
by the Austrian controller. temperature
control accuracy is up to ±0.5℃.
Fully oil-cooled two-headed motor-driven servo control technology
The fully oil-cooled two-headed
motor-driven servo system is the
quintessence of highly-integrated servo
pump system. It eliminates the influence
of instability in machine operation due
to the work environment and further
reduces energy consumption of hydraulic
circuit. Synchronized drive technology
makes hydraulic circuit response faster
and movements more efficient.
Service Process
01
Process/Mold Analyse and Design
- Raw materials selection
- Product design
- Mold flow analysis
- Mold design suggestion
02
Equipment Selection Suggestions
- Product performance
- Product quality
- Ease of use
- Safety requirements
03
Whole Plant Planning Advice
- Planning of production line
- Arrangements for people, machines, and materials according to process flow
- Peripheral automation
- Smart connection
04
Delivery Solutions
- Professional installation and debugging
- On-site operation training
- Molding process training
05
After Sales Solutions
- YFO services
- Preventive maintenance
- Device upgrade
