YIZUMI's SKII-V-PET Series, a second-gen PET preform solution using the IPD model, excels in speed, professionalism, and efficiency. Leading in China for plasticizing efficiency, it offers diverse preform types. Superior technical performance makes it the top choice in PET preform injection molding. Clamping forces: 1,200-6,500 kN.
Icon
More Efficient

Icon
More Professional

Icon
Customized Design

Customized Pet Plasticizing Components
Preforms for cosmetic products
- Bearing in mind thecharacteristics of the cosmetics industry, we have developed the special highperformance color mixing screw for PET colour preforms with a L/D ratio of 24:1.
- For PET materials such as iridescent and opalescent powders, it effectively improves the quality of color mixing and stability of products and ensures the surface color uniformity after blow molding.
Water and oil preforms
- A special PET high-speed screw for water and oil preforms designed according to the characteristics of ordinary water bottle and oil bottle industries provides a L/D ratio of 24:1 and achieves a high-speed and high-quality plasticizing under low shear conditions.
- It increases the plasticizing efficiency by nearly 100% compared with standard injection molding machines and boosts the original PET capacity by more than 30%.

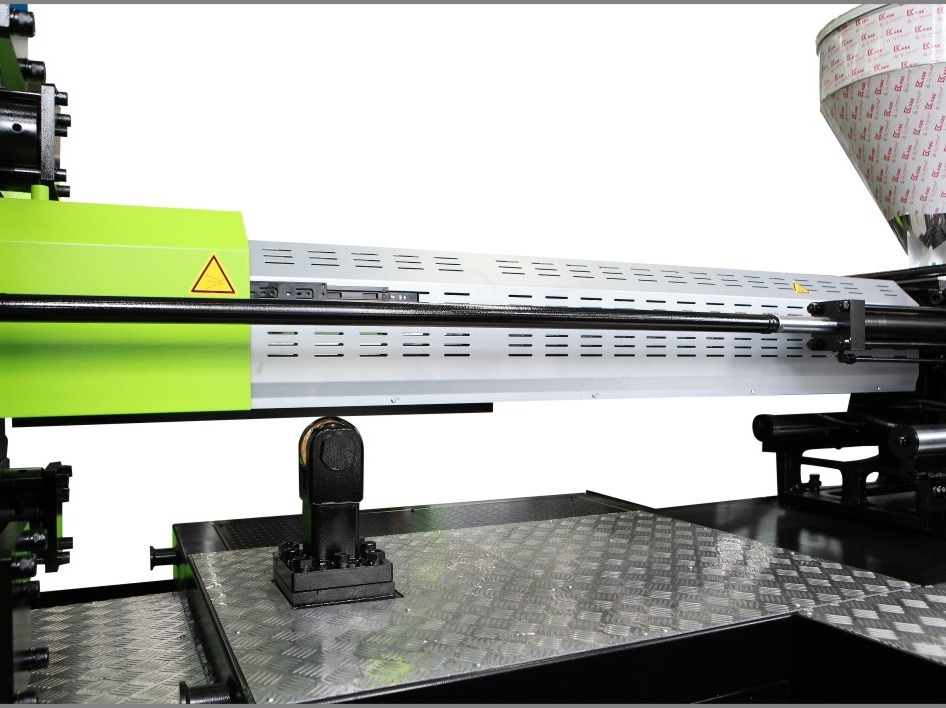

Injection Unit
Optimized Injection Unit
- The series uses a double carriage design and one-piece carriage support for models with multi-cavity molds.
- The optimized injection mechanism applies force on the injection unit evenly and provides improved injection rigidity to ensure that the force in the direction of the unit movement is concentric with the force applied on injection to reduce friction and increase injection stability and accuracy.
High-performance Plasticizing System
Custom made enlarged plasticizing motor with enhanced motor displacement to ensure the service life of motor and stability of products.

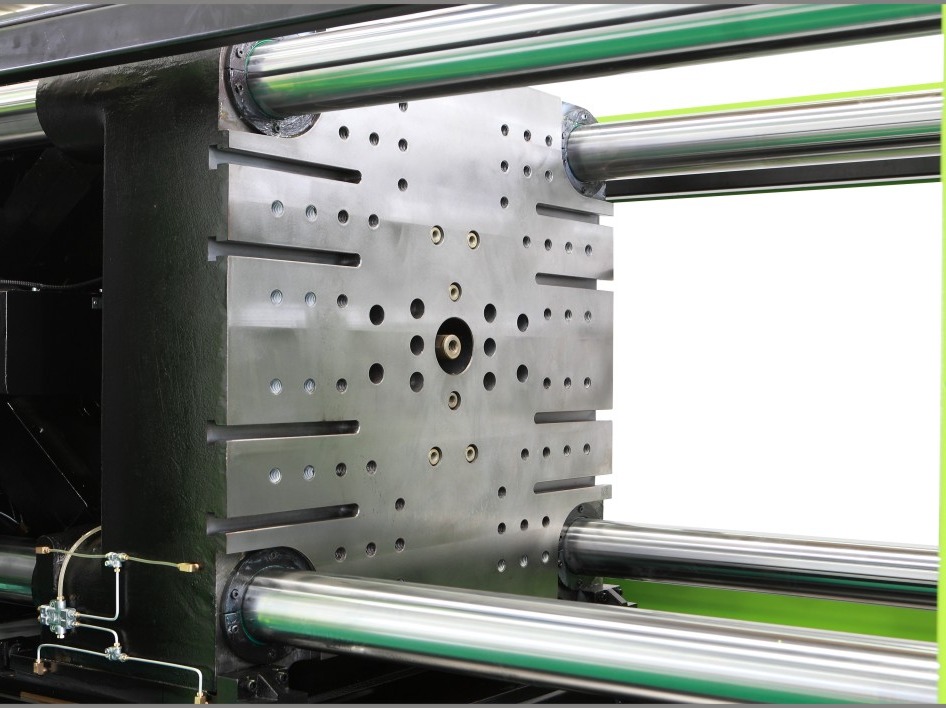

Platen With T-slot + Mold Clamp Hole Combination
The platen uses T-slot + mold clamp hole combination in the horizontal direction and mold clamp holes in the vertical direction to facilitate the mold loading and unloading and enhance the overall rigidity of the platen.

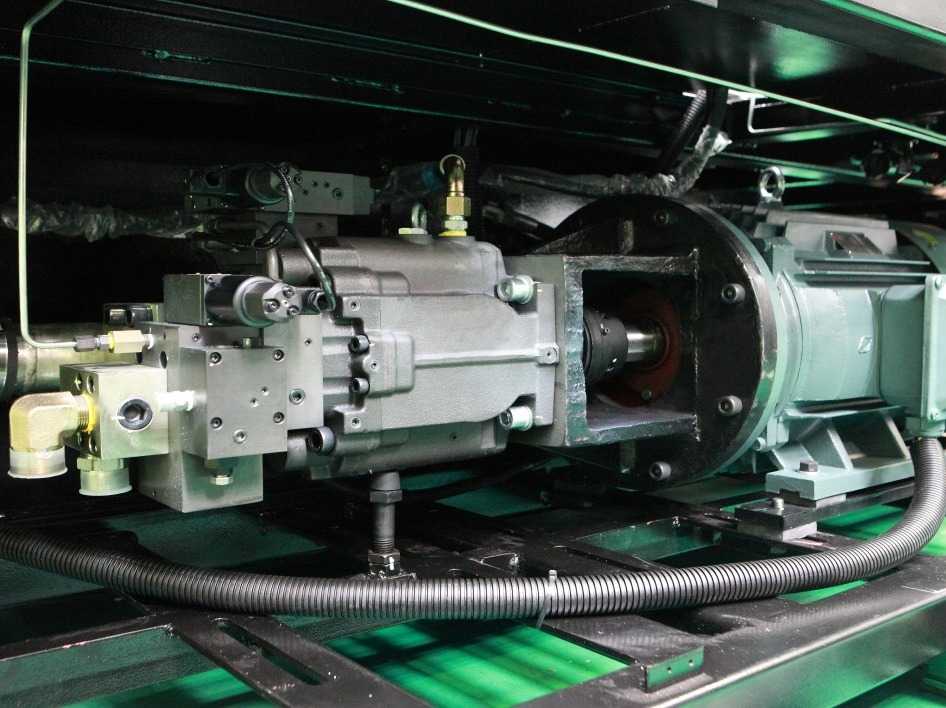

Enlarged Motor and Pump
By increasing the power of motor and pump, achieve higher productivity with a speed 20% faster than conventional machines.

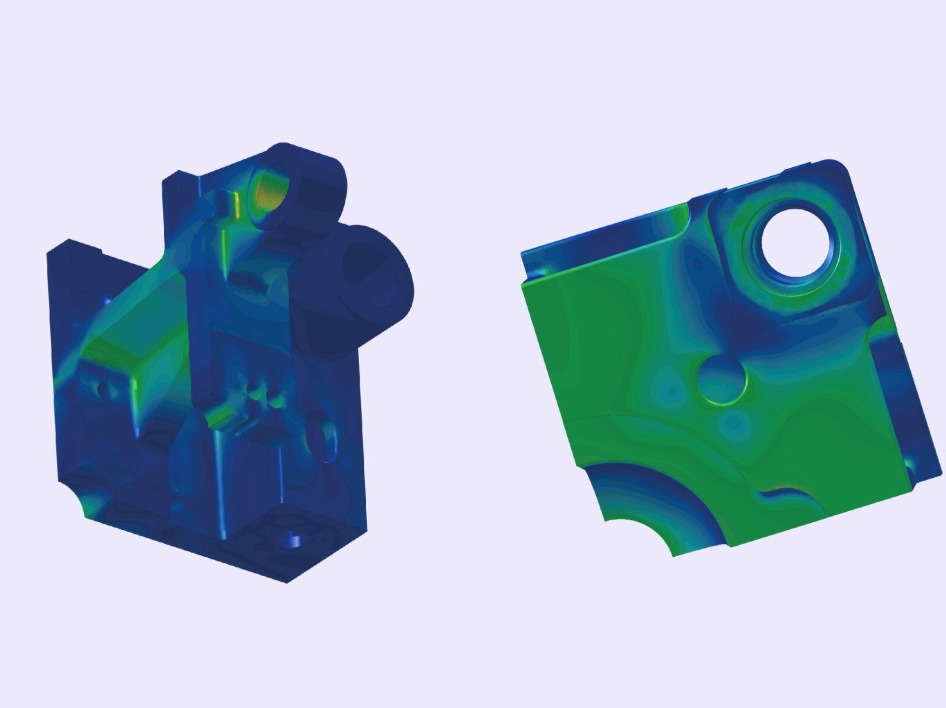

Double Center Press Platen
- Both fixed and movable platens adopt a Double Center Press Platen (DCPP) design to ensure a minimum platen deformation and balanced pressure distribution in platen’s mold area during high-pressure clamping.
- It can effectively decrease flash, short shot, and other defects due to the deformation of the platens, reduce clamping force, and extend the service life of molds.

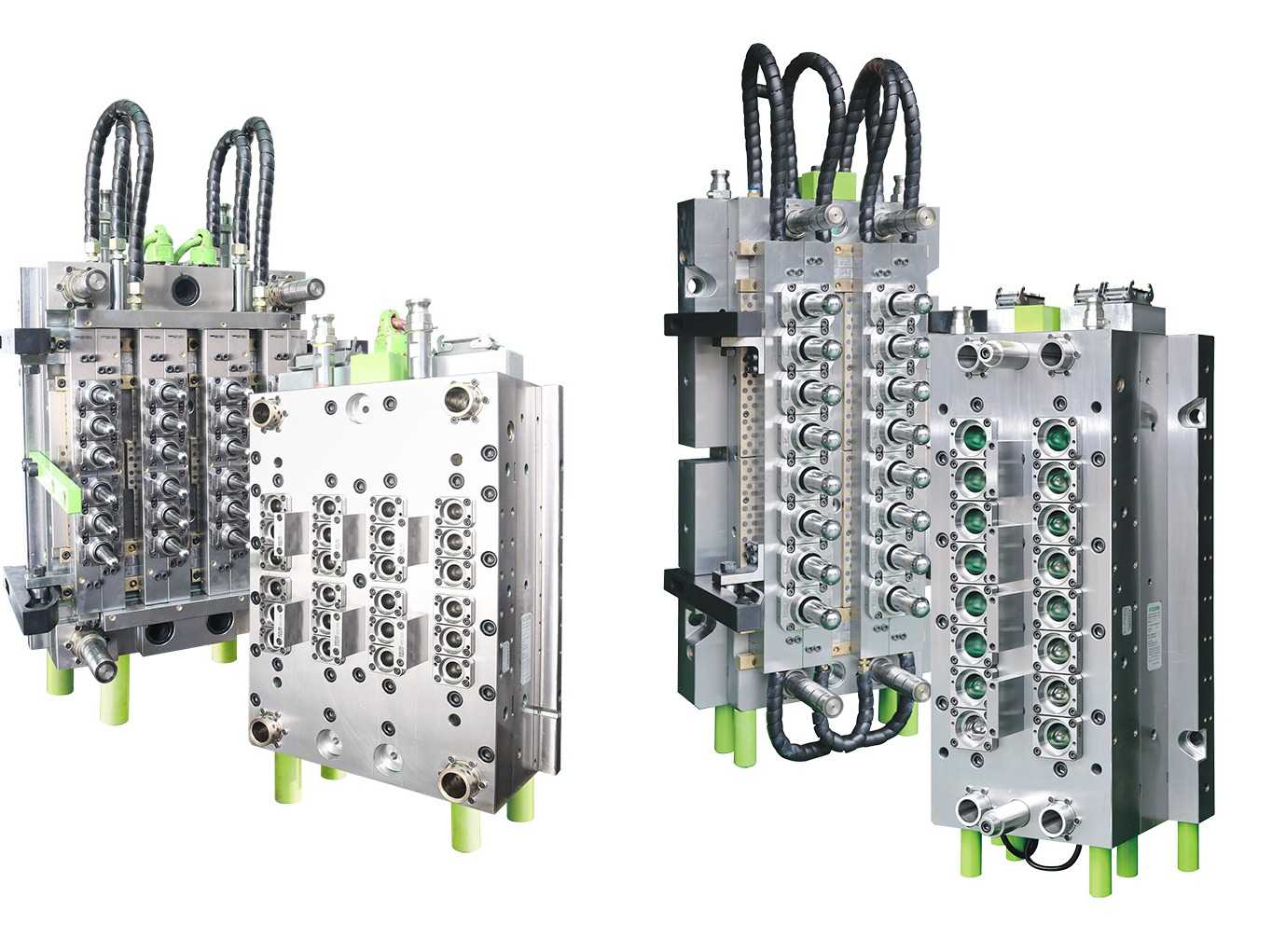

PET Preform mold
Offer a full range of PET preform production processes and equipment including: injection molding machines,
bottle blow molding machines, molds, and other related equipment.

Product Video

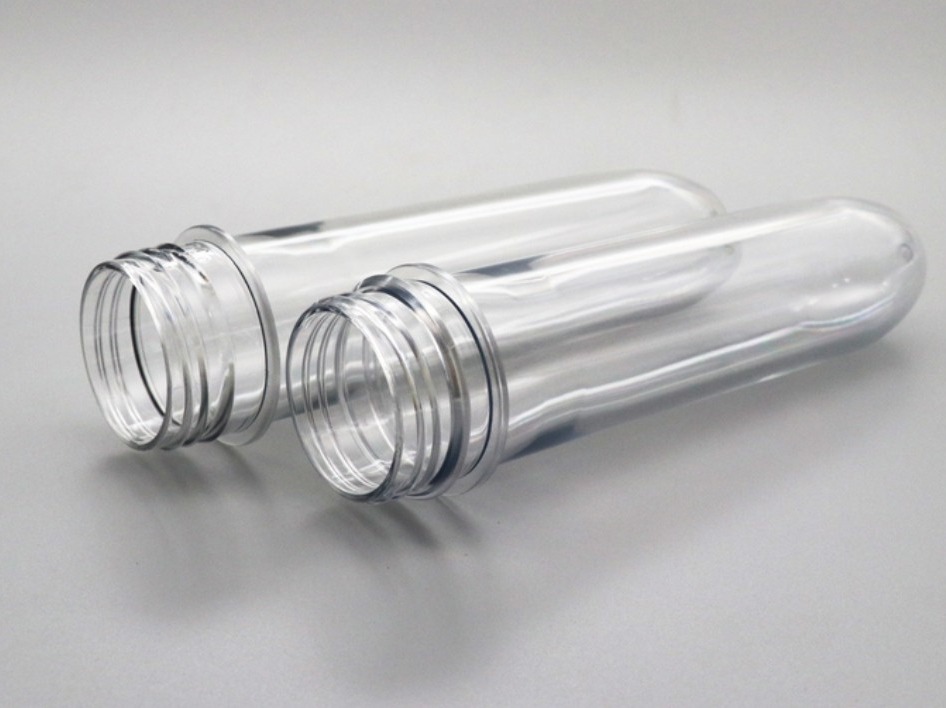

Pet preform
Pet preform system

Industry Application

Auto Parts
Auto Parts
Relevant Recommendation
Relevant Products
Relevant Technologies
Relevant Automation
SKⅢ Series General Purpose Injection Molding Machine

SKⅢ Series General Purpose Injection Molding Machine

The SKⅢ series offers efficiency, energy savings, stability, and user experience. With SK/A5 platform interchangeability and continual optimization, it's the top choice for small to medium-sized machines. Clamping forces range from 900 to 10,000 kN.
UPVC & PPR Series Special Injection Molding Machine For Pipe Fitting

UPVC & PPR Series Special Injection Molding Machine For Pipe Fitting

The series' capability to produce complex pipe fittings with high precision makes it ideal for both UPVC and PPR applications, catering to the evolving needs of the plumbing and construction industries. UPVC series clamping forces from 2,000 to 7,500 kN. PPR series clamping forces from 1,600 to 2,6000 kN.
LSR Series Liquid Silicone Injection Molding Machine

LSR Series Liquid Silicone Injection Molding Machine

This series represents a shift from traditional thermoplastics to advanced thermoset plastics, encompassing both hard (bakelite/BMC) and soft (liquid silicone) processes. The LSR machine integrates a specialized liquid silicone injection unit with the SKII platform, offering high precision and stability. It's designed for efficient, precise material blending, vulcanization, and solidification, meeting the dynamic needs of modern markets with improved product yield.
Optimized clamping unit

Optimized clamping unit

1. The upgraded clamping unit can provide larger clamping force, better facilitating the molding of thin-wall and deep-cavity products. 2. Platen, tie bars and machine frame of better mechanical properties can better improve the rigidity of the whole machine and reduce deformation. 3. The rigidity of overall mold locking is increased by more than 25%.
Surface Planeness Testing

Surface Planeness Testing

Rapid response Accurate detection.

Service Process

01
Process/Mold Analyse and Design
  • Raw materials selection
  • Product design
  • Mold flow analysis
  • Mold design suggestion
02
Equipment Selection Suggestions
  • Product performance
  • Product quality
  • Ease of use
  • Safety requirements
03
Whole Plant Planning Advice
  • Planning of production line
  • Arrangements for people, machines, and materials according to process flow
  • Peripheral automation
  • Smart connection
04
Delivery Solutions
  • Professional installation and debugging
  • On-site operation training
  • Molding process training
05
After Sales Solutions
  • YFO services
  • Preventive maintenance
  • Device upgrade
