Machine Introduction Video
High plasticizing efficiency
Suitable for clean room production
High injection speed
Short dry cycle
Machine Introduction Video
Clamping Unit
Stable Tie-Bar Free(TBF) structure
- No contact between the platen and the tie bars, and
no lubricating oil on the tie bars, avoid
contamination to product;
- Low mechanical friction resistance during mold opening and closing, less energy loss;
- Stable and reliable structure.
- Low mechanical friction resistance during mold opening and closing, less energy loss;
- Stable and reliable structure.
Injection pressure closed-loop control
- Make the control more precise and the molding more
stable and reliable;
- Stability accuracy of injection pressure and holding pressure up to ± 0.1Mpa.
- Stability accuracy of injection pressure and holding pressure up to ± 0.1Mpa.

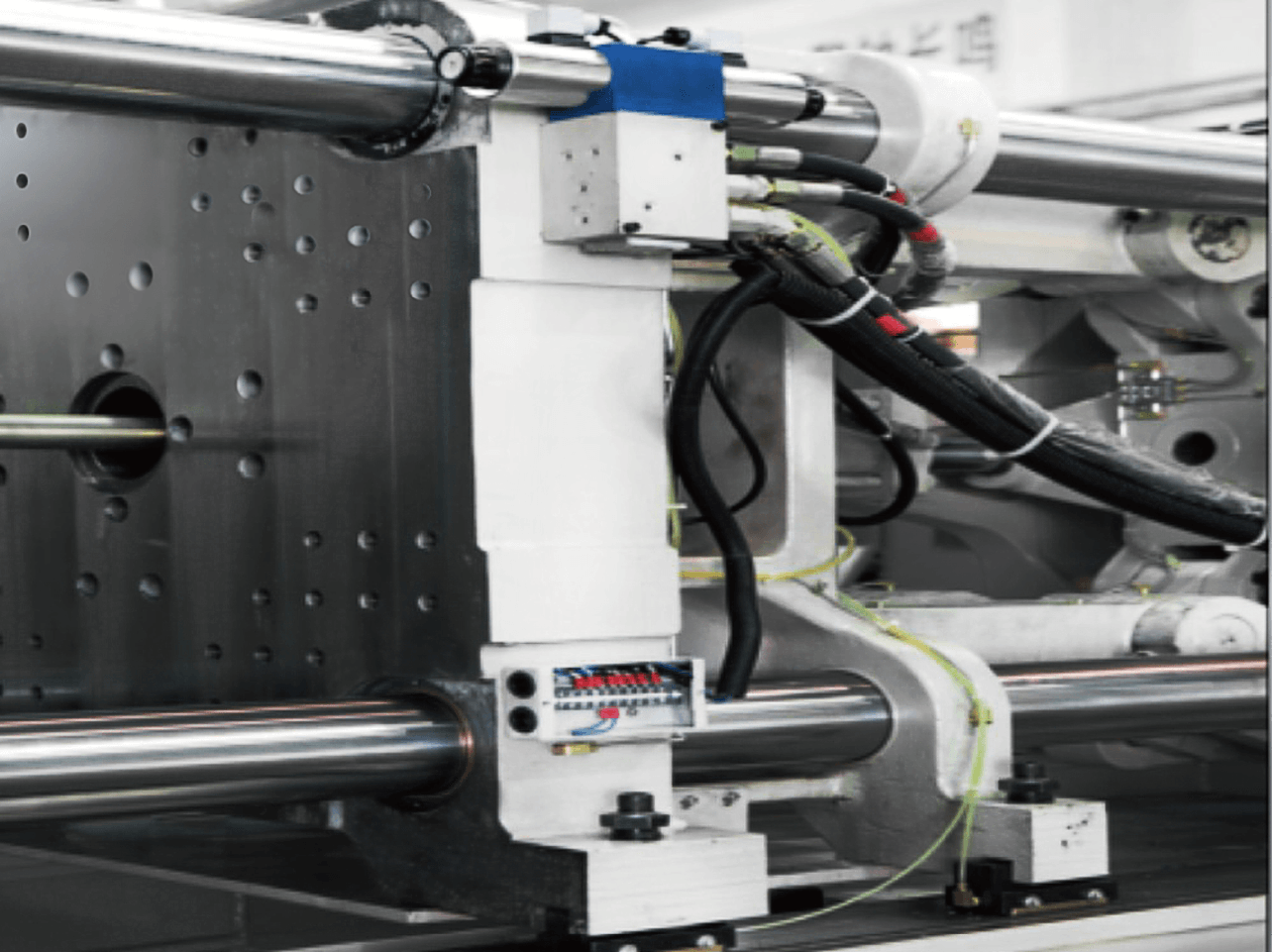

Linear guide rail structure
- Guiding accuracy can reach 0.02mm;
- Fast and stable mold opening and closing, with high repeatability up to±0.03mm.
- Fast and stable mold opening and closing, with high repeatability up to±0.03mm.

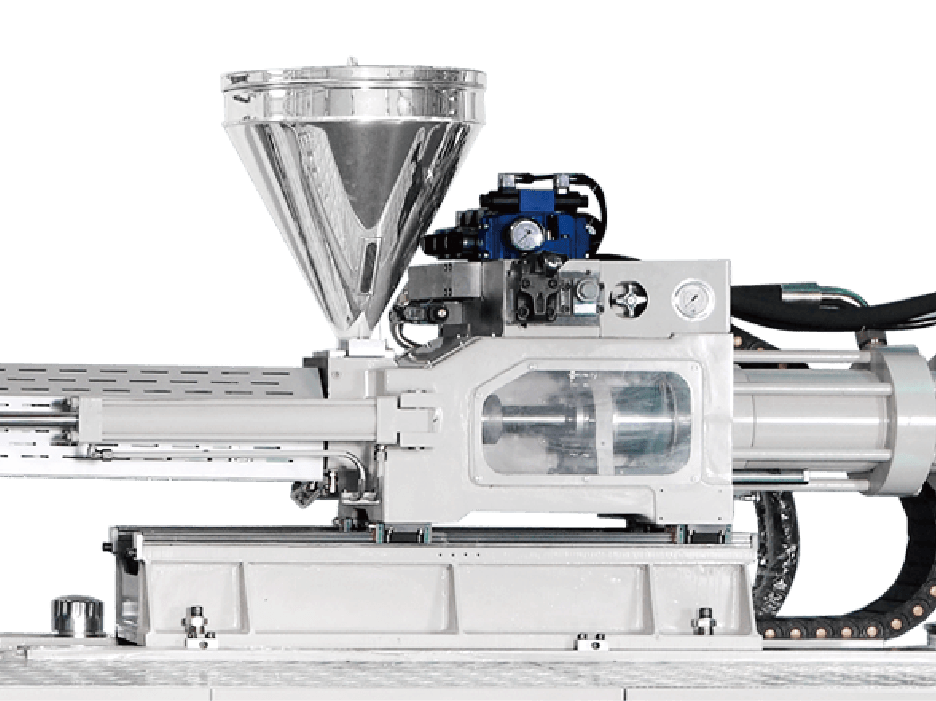

Injection Unit
High speed injection
Injection speed can reach up to 120-150mm/s for more
diversified molding applications so that requirements
of commonly used medical products can be met.
High plasticizing efficiency, good plasticizing effect
For raw materials commonly used in medical industry
like PP, PS, high-plasticizing and high-mixing screw
is used to improve plasticizing efficiency and effect,
with over 20% increase when compared with general
screw, showing better plasticizing efficiency.

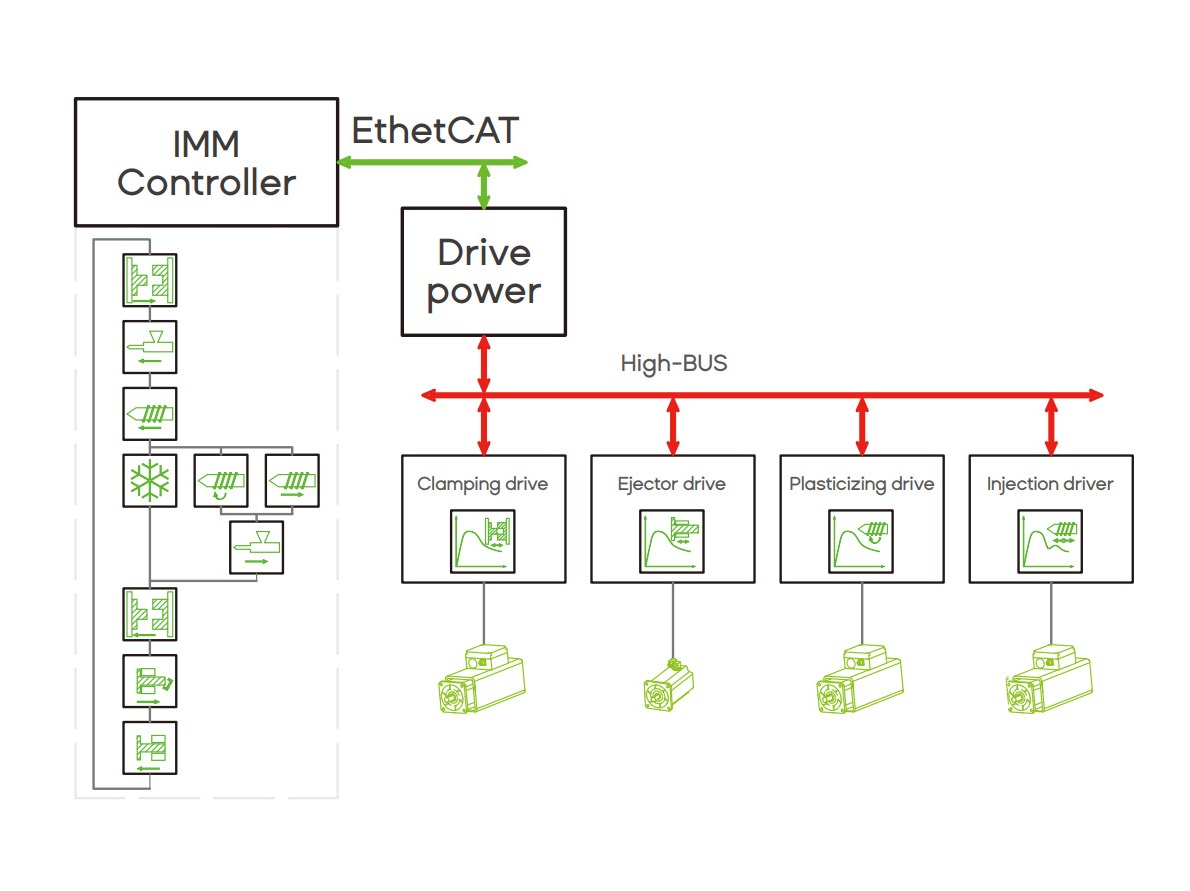

Unique SDC servo direct control technology
- The process algorithm built into the servo driver
isindependently developed by YIZUMI;
- Control cycle was reduced from 2-4ms to 0.125ms;
- Injection position, mold opening and closing positionswitching position and control position accuracy aremore accurate.
- Control cycle was reduced from 2-4ms to 0.125ms;
- Injection position, mold opening and closing positionswitching position and control position accuracy aremore accurate.

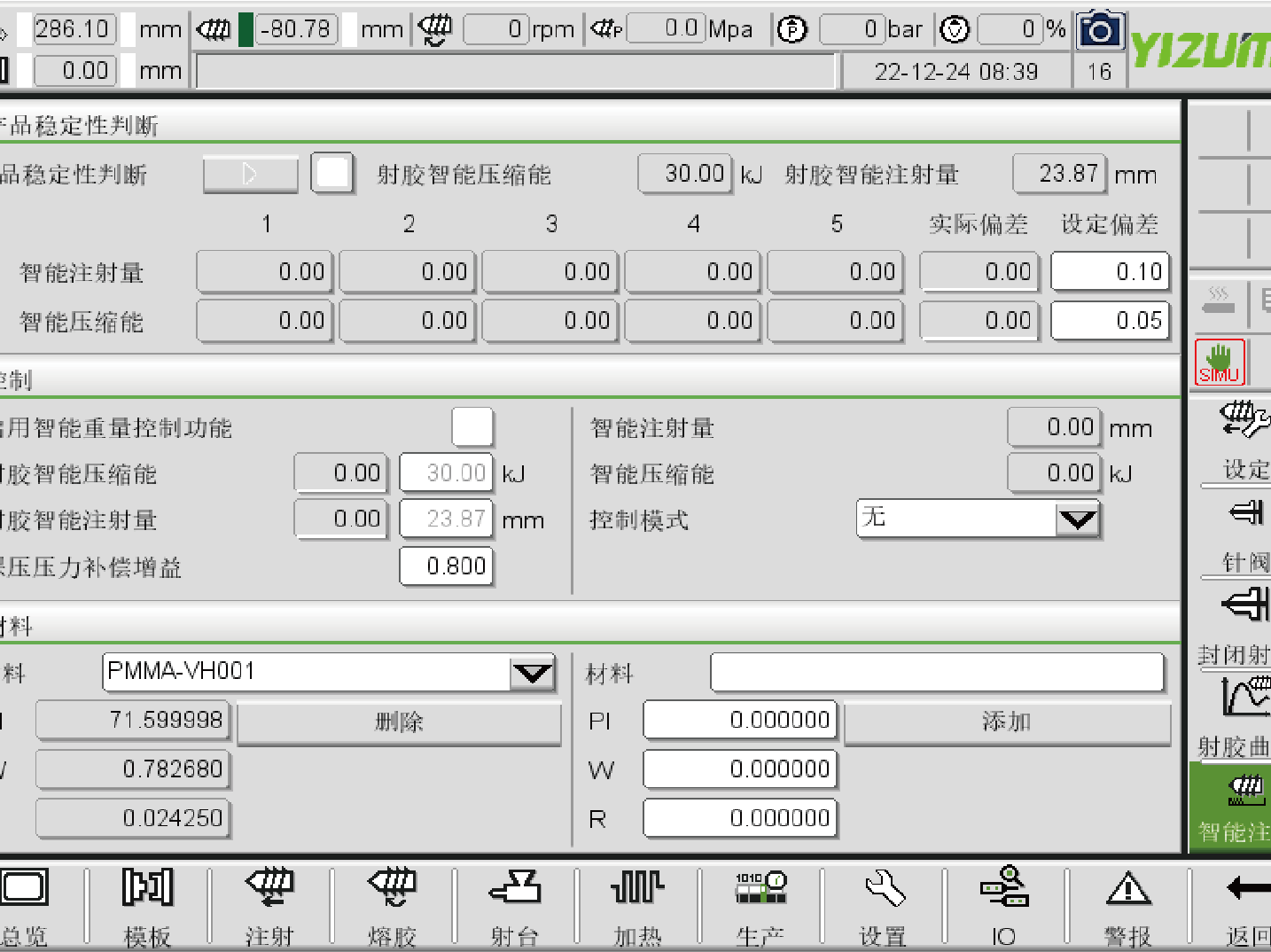

Intelligent weight control
- Automatic monitoring and real-time dynamic adjustment of
molding process parameters;
- Effectively reduce the impact of external factors on the molding process, such as mold temperature, raw material properties, etc., to improve the stability of the process;
- Effectively reduce product weight differences and improve consistency.
- Effectively reduce the impact of external factors on the molding process, such as mold temperature, raw material properties, etc., to improve the stability of the process;
- Effectively reduce product weight differences and improve consistency.
Product Video
Industry Application
Relevant Recommendation
Relevant Products
Relevant Technologies
Relevant Automation
D1 Series Two-platen Injection Molding Machine
YIZUMI Advanced Series: German tech,
expertise in large-tonnage two-platen
machines. Innovating to set a benchmark.
Clamping forces: 5,500-40,000 kN.
FF Series Electric Injection Molding Machine
This series surpasses traditional
machine standards, facilitating seamless
automation and intellectualization
integration for improved quality
consistency and efficiency. Superior in
thickness, precision, and complexity, it
meets demanding core product needs.
Clamping forces range from 900 to 13,800
kN.
ICM Low Pressure Injection Molding Technology
With response precision of ±0.015mm/2ms
and automatic template parallelism
correction control, SmartClamp, an
intelligent clamping technology, is
ideal for vehicle interior parts
production like the sunroof and woven
fabric in molds.

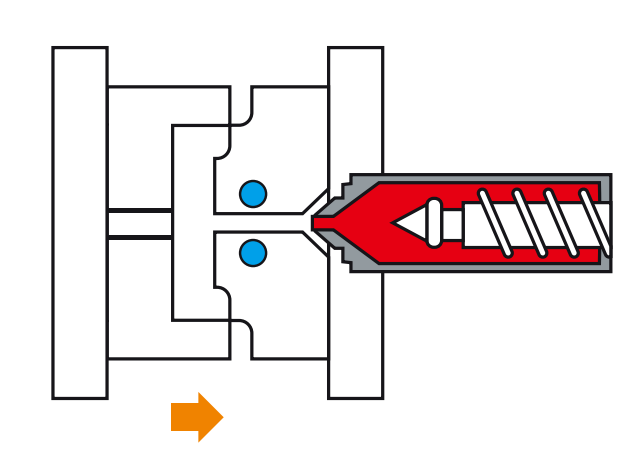

Stack Mold Technology
1. Improved efficiency of 30-80%,
estimated according to different
production processes. 2. Less demand on
equipment and operators, space saving.
3. Effective control of color
differences caused by the same injection
molding machine. 4. Simultaneous
production of different shapes of parts.
5. Automated assembly is easier through
uniform shrinkage and deformation after
a set of workpieces are produced
simultaneously.
Flap Folding And Protective Film Application
The flap folding and protective film
application system integrates the flap
folding and film application of food
packaging processes. It has achieved
linked operation with the injection
molding machine, effectively reducing
the manual operation time and providing
customers with a better and more
convenient product experience.
Wheel Eyebrow Strip
YIZUMI's wheel eyebrow strip installer
is a the special equipment for affixing
the left and right automotive wheel
eyebrow adhesive strips. The main unit
of the system adopts a dual-station
turntable. Materials are placed onto the
equipment fixture manually. Using
two-hand start, the 6-axis robot palm is
equipped with automatic adhesive
application, drying, and automatic
sticker affixing modules to achieve a
fully automatic operation. It
significantly improves production
efficiency while reducing the workload
of operators and operating costs.
Surface Planeness Testing
Rapid response Accurate detection.
Service Process
01
Process/Mold Analyse and Design
- Raw materials selection
- Product design
- Mold flow analysis
- Mold design suggestion
02
Equipment Selection Suggestions
- Product performance
- Product quality
- Ease of use
- Safety requirements
03
Whole Plant Planning Advice
- Planning of production line
- Arrangements for people, machines, and materials according to process flow
- Peripheral automation
- Smart connection
04
Delivery Solutions
- Professional installation and debugging
- On-site operation training
- Molding process training
05
After Sales Solutions
- YFO services
- Preventive maintenance
- Device upgrade
